openLCA Libraries User Guide

What is a library?

The library feature in openLCA 2.0 and later versions enables the use of databases together without needing to import them on top of one another. A library serves as a read only database that can easily be combined with other databases. Processes and other elements that are part of a library are not editable but can be utilized as part of processes or product systems in the foreground database. Libraries are beneficial for the current set-up of the Federal LCA Commons (FLCAC) as they allow for multiple distributed repositories to be self-contained, while still promoting interoperability between repositories. The connections provided by libraries benefit multiple repositories on the FLCAC.

Library Features


Downloading a repository with a Library

When you download and import a repository that is connected to a library on the FLCAC you will be prompted to connect to the library as well. The url field should automatically populate with the library FLCAC url or you can choose to add a library from a file.

If downloading a JSON-LD file with a library from another source, aside from the FLCAC, the library file must also be downloaded and referenced when importing into openLCA.

Creating a process or product system

To create a process with library flows, use the same process as when adding flows from your foreground database. The only difference is that flows and processes are indicated as library elements with these symbol: image image.

Product systems also generate similarly with library processes. Ensure that library providers are connected in your model graph and check the results to ensure that they the library processes were included.

Exporting a Library

To share a database the contains a library, the library must be exported and shared separately. To export a library, navigate to the “Libraries” folder in the foreground openLCA navigation pane, right click on the desired library, and select export.

Importing a Library

To import a library into a foreground database, open the database by double clicking, right click the database name and select “Add a library”, then choose the desired library. The library can exist in the local version of openLCA or it can be imported from outside of openLCA.

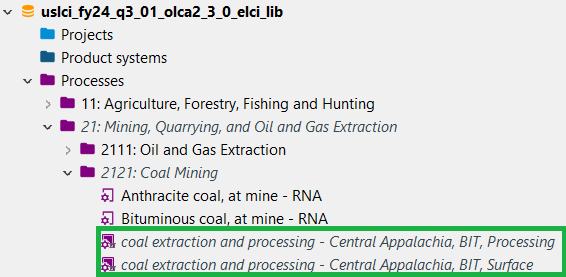

The library should now be added to the foreground database. A “Libraries” folder will appear in the foreground database and the added library can be viewed. Library elements appear in this folder as well as in the foreground database. Library elements are italicized and show as a lighter shade than the foreground database elements.
